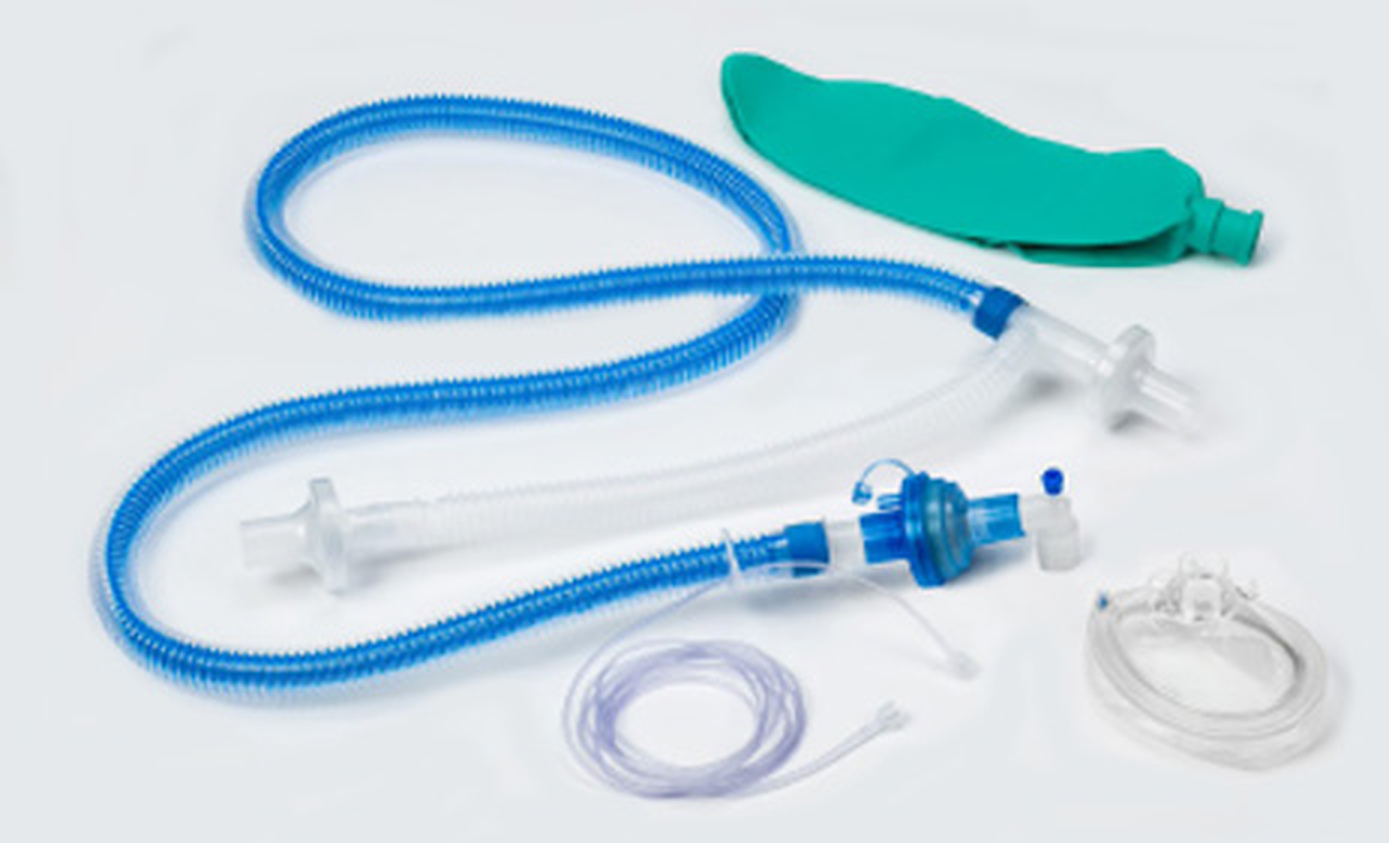

“SURE BREATH” Single Limb Breathing Circuit
Limb-O SURE BREATH is a single divided tube utilizing a flexible septum running the length of the tube.
Advantages include:
Light weight
27% less weight than traditional dual-limb circuits for less torque on the endotracheal tube offering more comfort for the patient.
Lower compliance
The presence of a septum in Limb-O Sure Breath decreases compliance in the circuit to significantly increase delivered volume without sacrificing drape.
Thermally efficient
Effectively transfers heat from the expiratory to the inspiratory side of the circuit. Increased thermal efficiency rates during surgery keeps gases warm and body temperature normothermic.

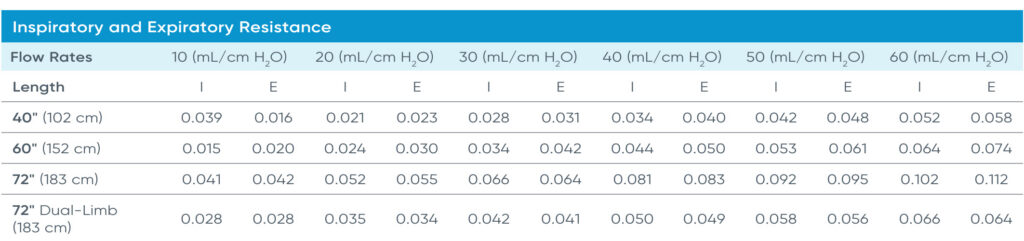

Resistance
Inspiratory and Expiratory Resistance
Consolidate inventory
The size of the lumen accommodates both adult and pediatric patients reducing the need for different systems for different patients.
DEHP-free
Less plastic which means less waste, more environmentally friendly.
Circuit materials:
- Corrugated tubing and septal wall – polyethylene
- 22 mm connectors – polypropy
- Cuff band – polyisop
- Expandable extension hose – polypropy
Thermally efficient
Net increase of 6.2 °C in the first 15 minutes at 4 L/min flow rates on anaesthesia machine.
Patient versatility
The Limb-O Sure Breath can be used for children and adults avoiding the need for different systems for different patients.
- Mild perioperative Hypothermia, Daniel I Sessler MD & Andrea Kurz MD.
- Reference on file. Evaluation of the functional characteristics of the Limb-O anaesthesia breathing circuit.
- Data on file. Weight with connectors.
- Data on file. Compliance of circuit @ 100 cm H₂O.
Customization
Surgical Bionics offers customization with options that include length, tubing preference, face masks, filters, heat and moisture exchanger with filter (HMEFs), gas sampling lines, breathing bags and more to create your perfect circuit solution.
LIMB-O SURE BREATH
Available at Local Distributors
